13.56Mhz RFID Reader&Writer

Min  Quantity :1pcs(Supply sample)

Supply Ability : 1000000pcs per Month lead time

Port                  : Shenzhen

Payment Terms : T/T,Western Union,Paypal

编码: 100. Categories: , .

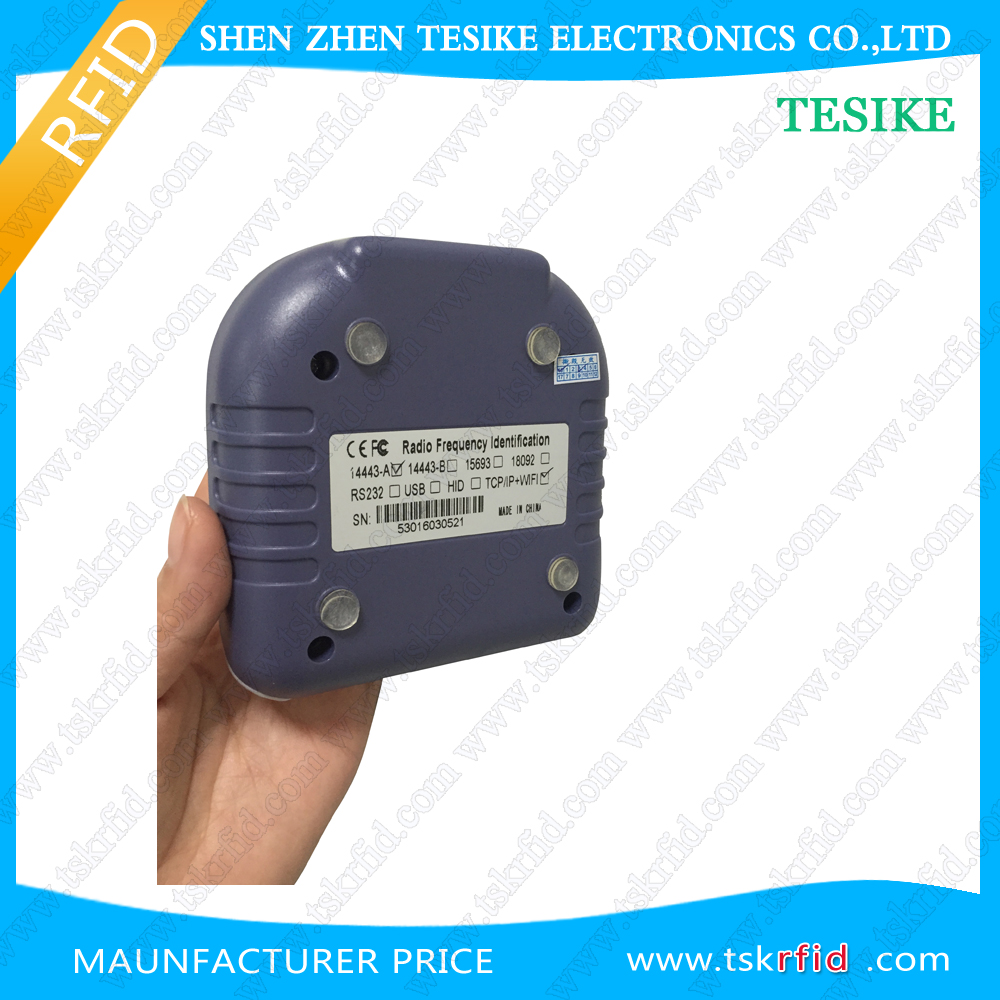

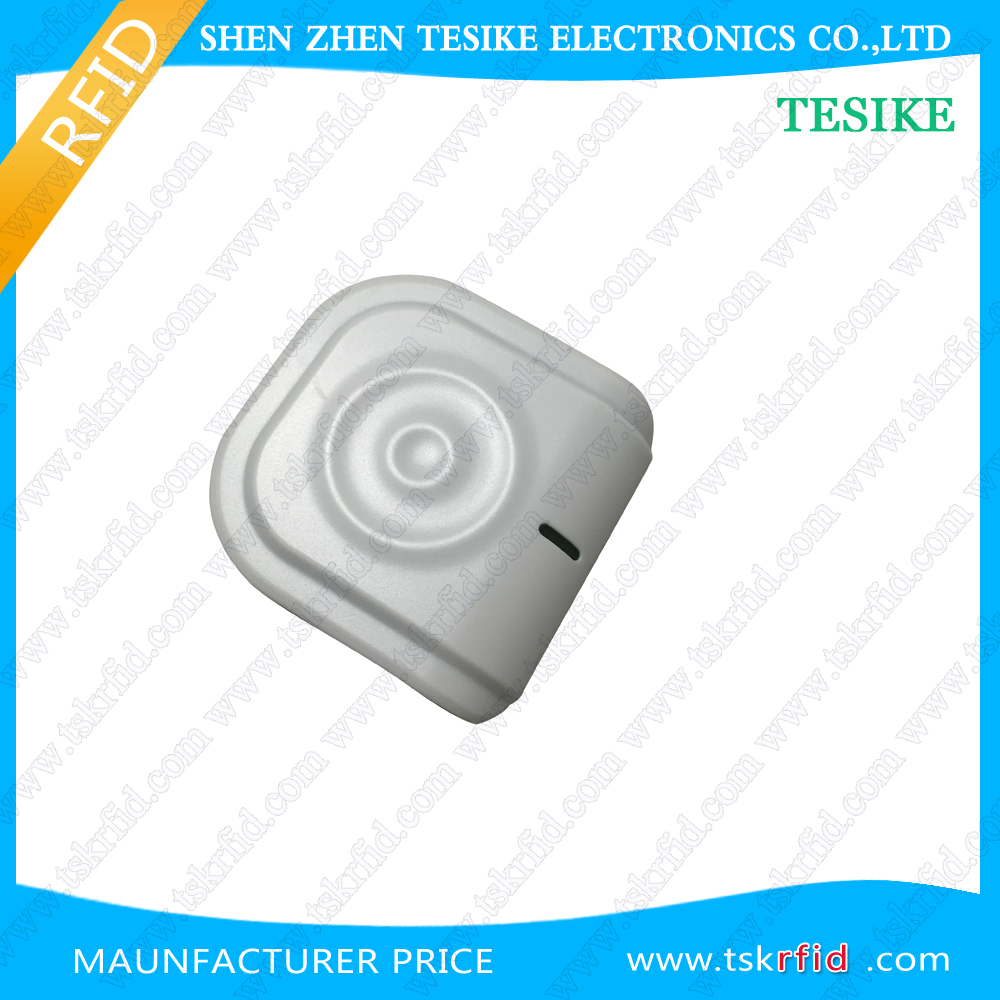

TSK530 Contactless reader-writer can read ISO14443A, B and ISO15693 standard
cards. It realizes connection with the PC machine and associated equipment through
RS232 serial interface or USB port or TCP/IP interface. Drive development kinds of
various platforms are provided together with the machine; attached demonstration
programs realize all functions of the access radio frequency card.
TSK530 type of reader-writer is a necessary front-end processing device for
developing contactless card related application products and system integration with
rich and complete interface communication functions. It is widely used in the smart
card management application systems fields.

Features:
· support P2P functions and
write NFC tags
· ISO14443A, ISO14443B,
ISO15693 compliant
· Support contactless CPU
card operation;
· Support WIFI + TCP / IP
(POE) Newsletter
· 2xLED indicator lights and A
buzzer

Standard ISO/IEC 14443-A/B,ISO/IEC 15693,ISO 18092
Supporting Card NFC,Mifare S50/S70/Ultralight,Mifare Pro,

AT88RF020,66CL160S,SR176, SRIX4K,I-code2,TI RFID Tag-it HF-I

Interface RS232,USB-UART,USB-HID,TCP/IP(POE)+WIFI
Read Distance >5cm(Depending on label size)
Baud Rate 9600-115200bit/s(Configurable , default 9600)
9600-115200bit/s(Configurable, default 9600) -10℃ ~ 70℃
Sheathing Material ABS
Dimension 100*100*27mm

Model Description:

Order model Interface
TSK530-Y-X TCP/IP(POE)
TSK530-H-X HID
TSK530-U-X USB-UART
TSK530-S-X RS232



Application:
· Access Control /Time
Attendance
· Production Authentication
· Guest Registration System
· System login/logoff
· Returnable Transit Items
· Logistic systems
· Express parcel management
· Ticketing smart label printer
and encoder
